Description
FDW
FDW Blank (Inch Wire)

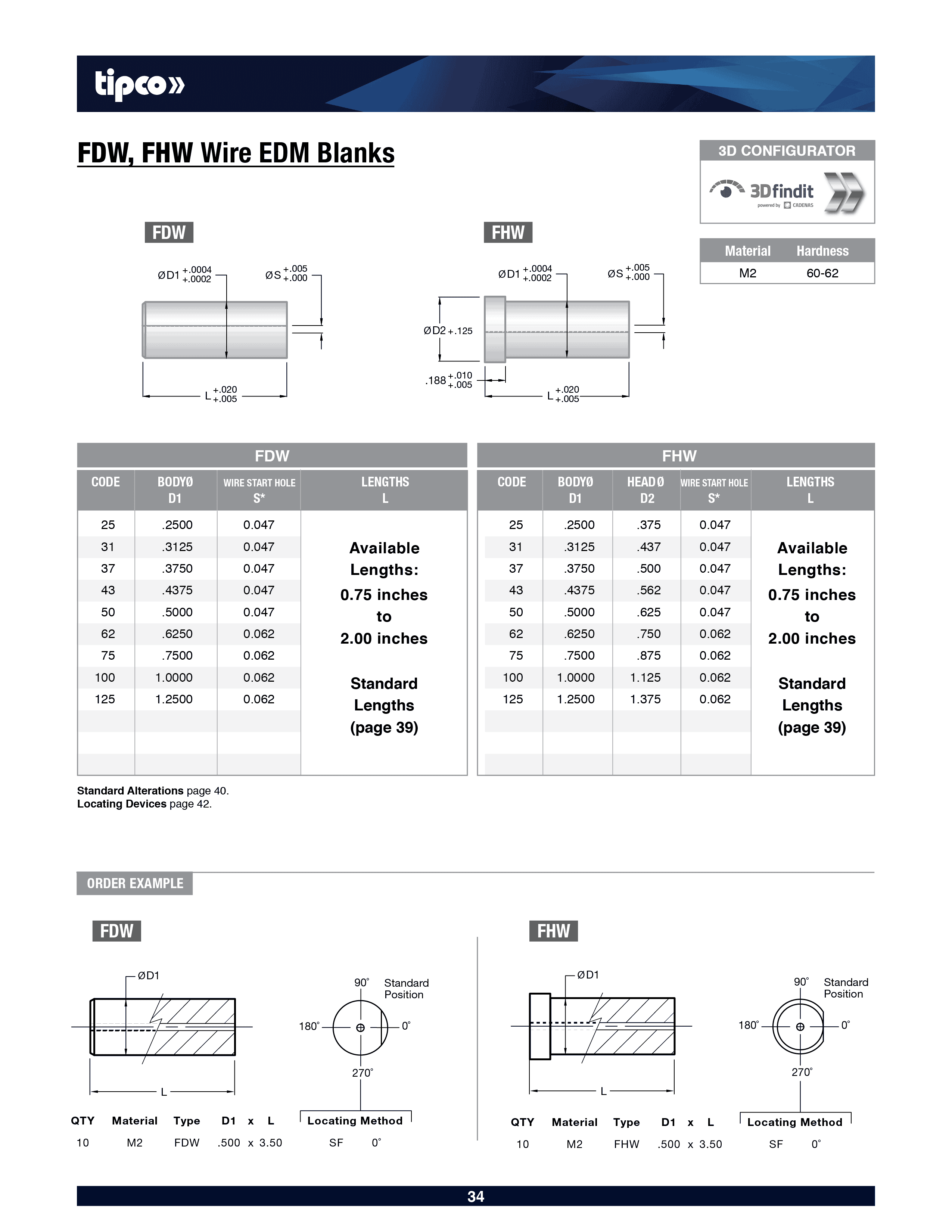

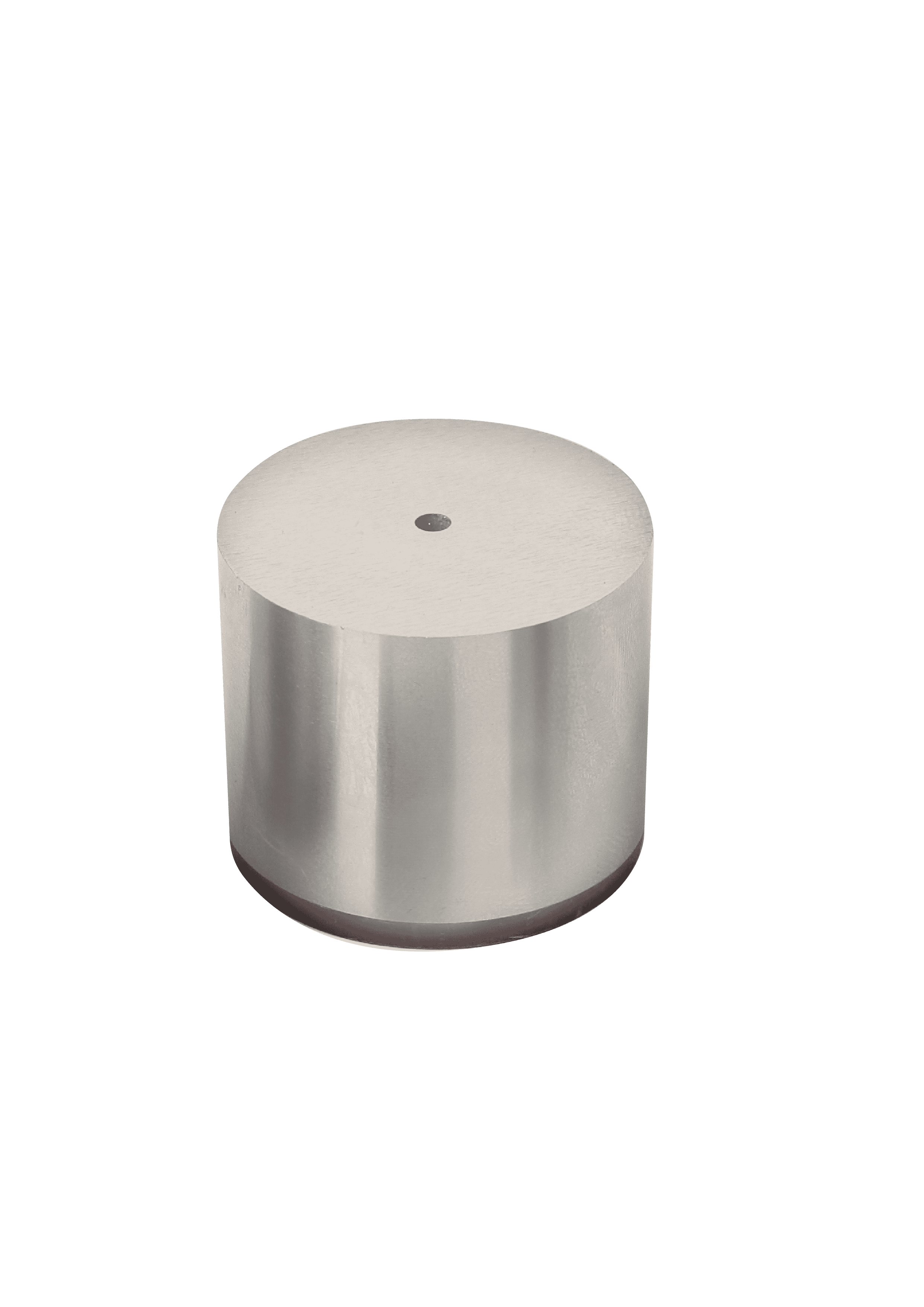

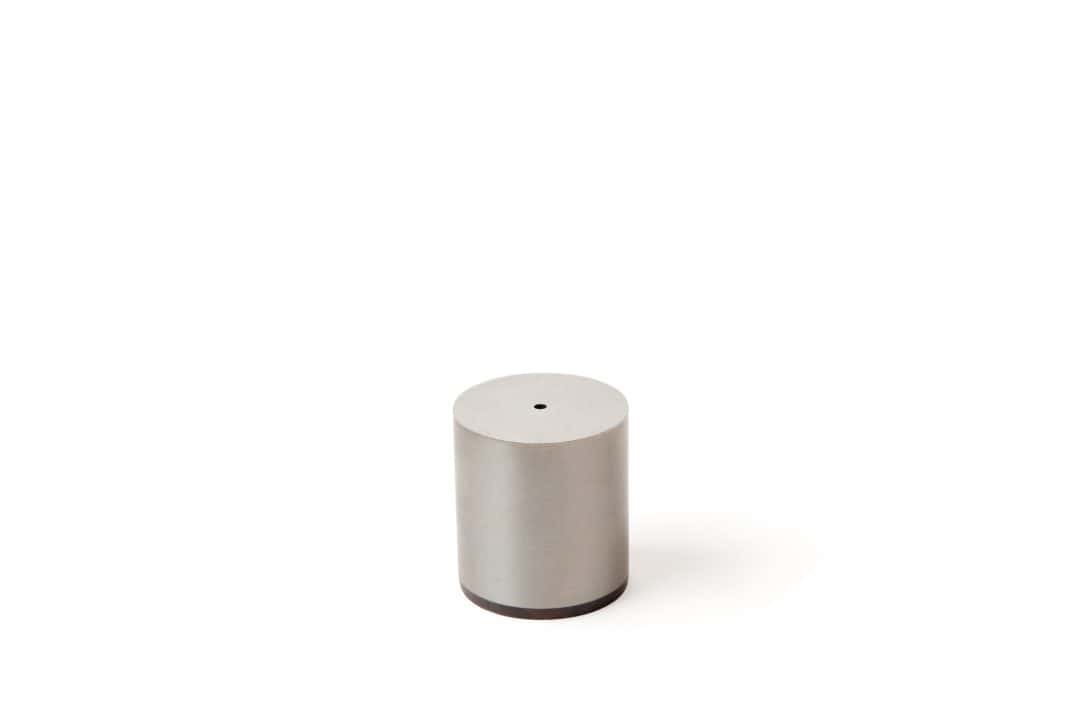

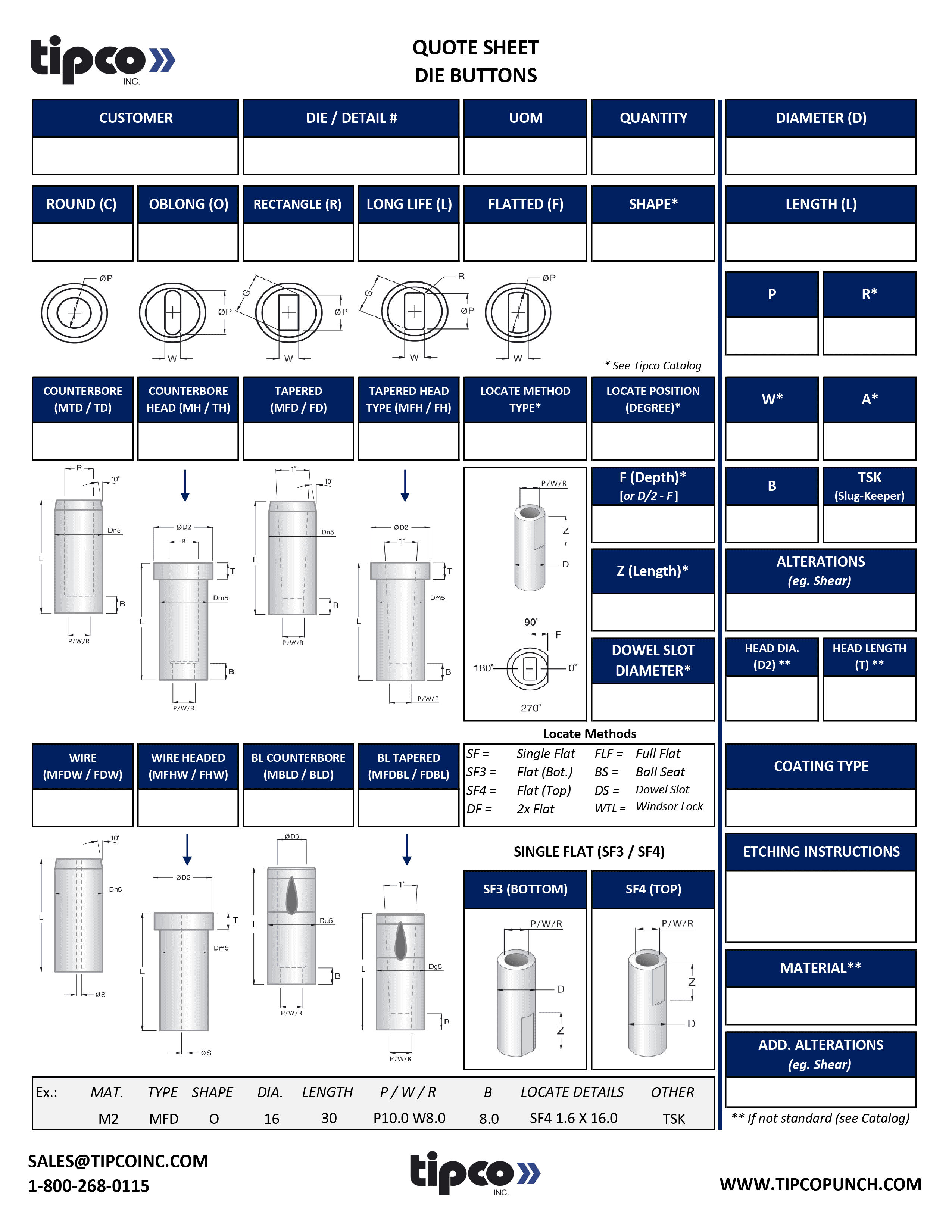

Order Tipco Wire (FDW) die button blanks based on: 1) Body diameter (D); and, 2) Length (L). Tipco Wire die buttons have a small center wire EDM “start hole”. For additional FDW die button details, view our Catalogue. NOTE: 50=.500; 75=.750; 100=1.00; 200=2.00; etc. To order shaped die buttons, Request a Quote.
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 3 × 3 cm |
| body_diameter | 25, 31, 37, 43, 50, 62, 75, 87, 100, 125, 150 |
| overall_length | 75, 87, 93, 100, 112, 125, 137, 150 |
