Description
H METRIC
H METRIC (Heavy)

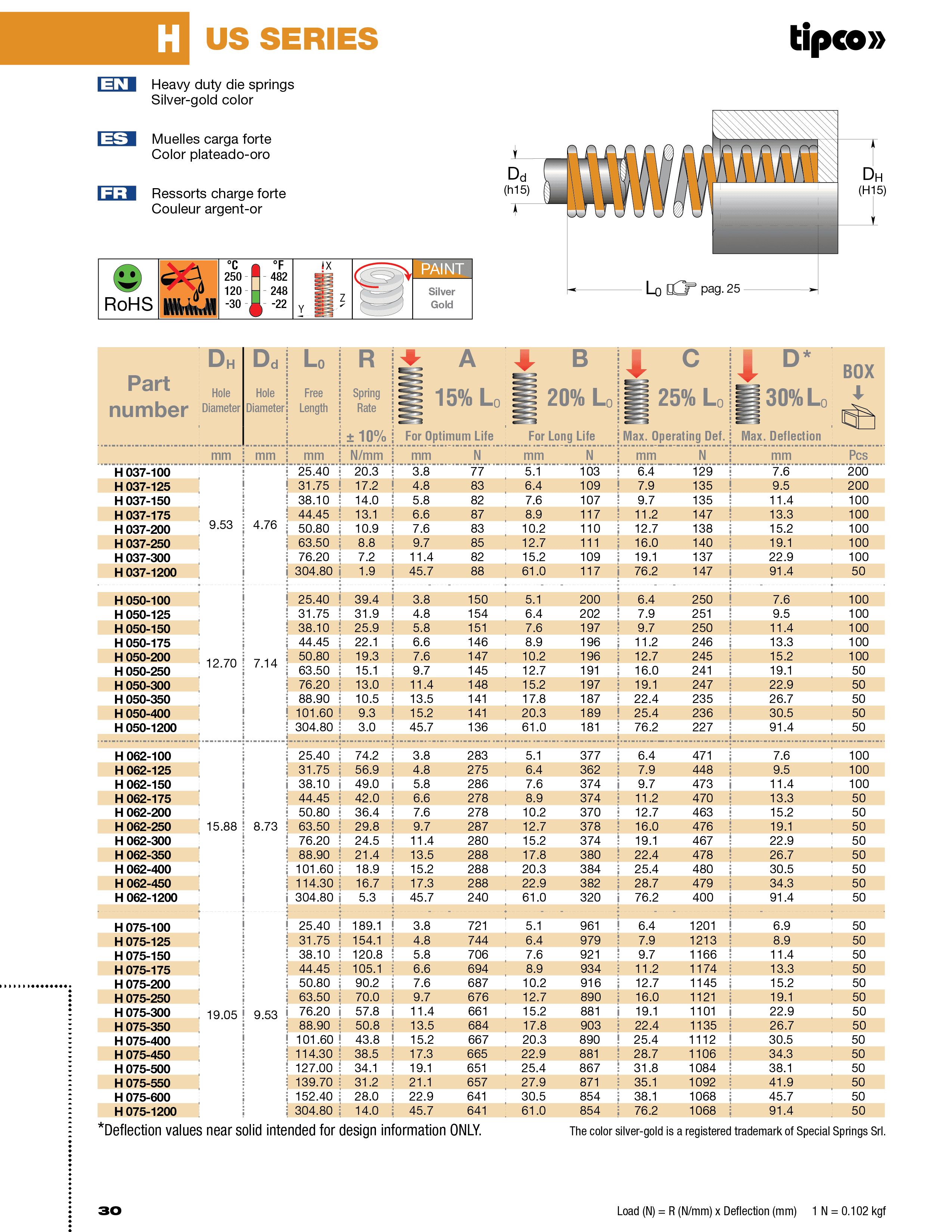

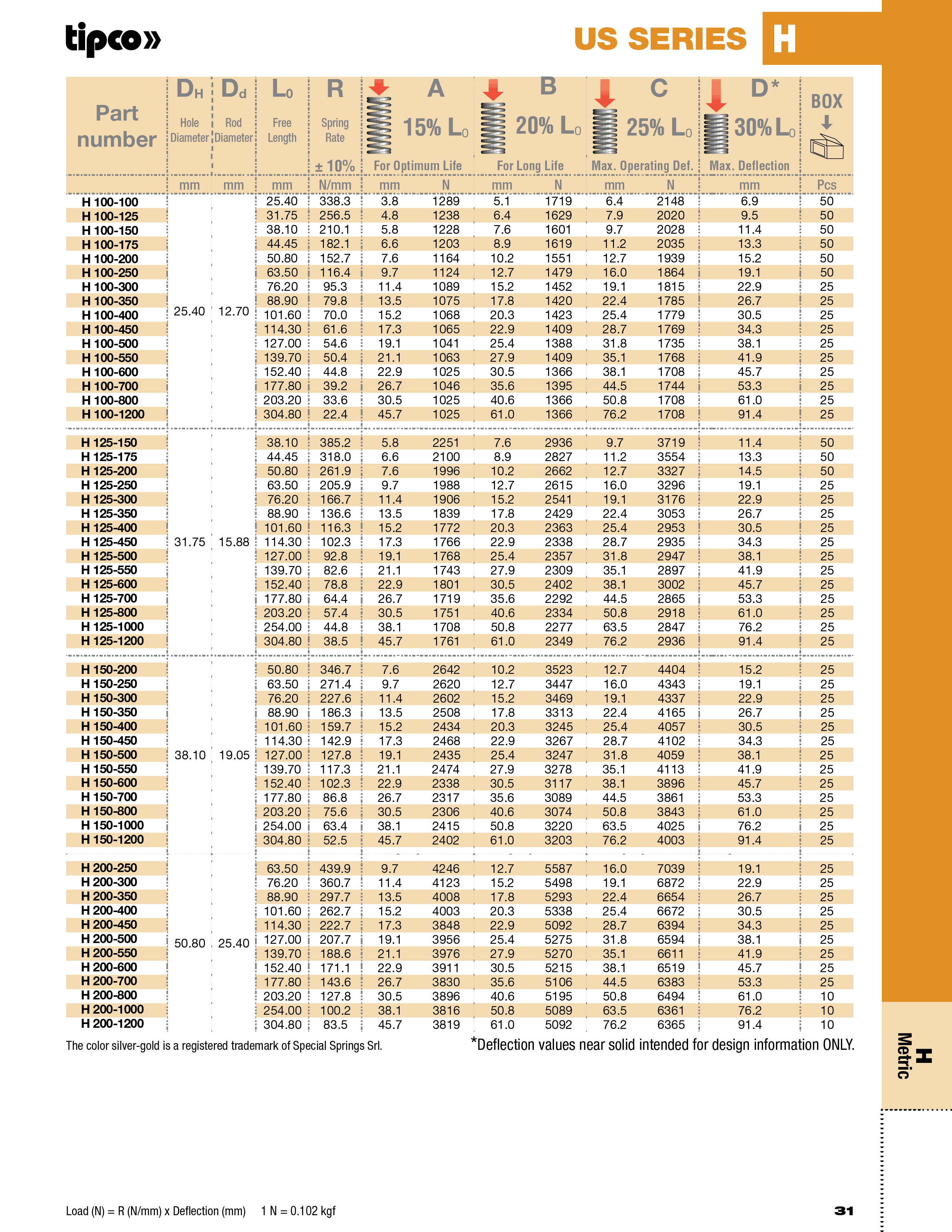

For spring selection, it’s necessary to find the estimated life and hole diameter (DH). Check the corresponding available forces. Afterwards, select the requested force and corresponding Series. In the selected Series, choose the requested deflection. Record the corresponding spring part number. In each Series, the spring part number can be selected using the hole diameter (DH) and free length (L0) dropdown menus.
Additional information
| Weight | .25 lbs |
|---|---|
| Dimensions | 12 × 2 × 2 cm |
| hole_diameter_opbdhclb | 9.53, 12.70, 15.88, 19.05, 25.40, 31.75, 38.10, 50.80, 63.50 |
| free_length_opbloclb | 25.40, 31.75, 38.10, 44.45, 50.80, 63.50, 76.20, 88.90, 101.60, 114.30, 127.00, 139.70, 152.40, 177.80, 203.20, 228.60, 254.00, 279.40, 304.80 |
