Description
MBH

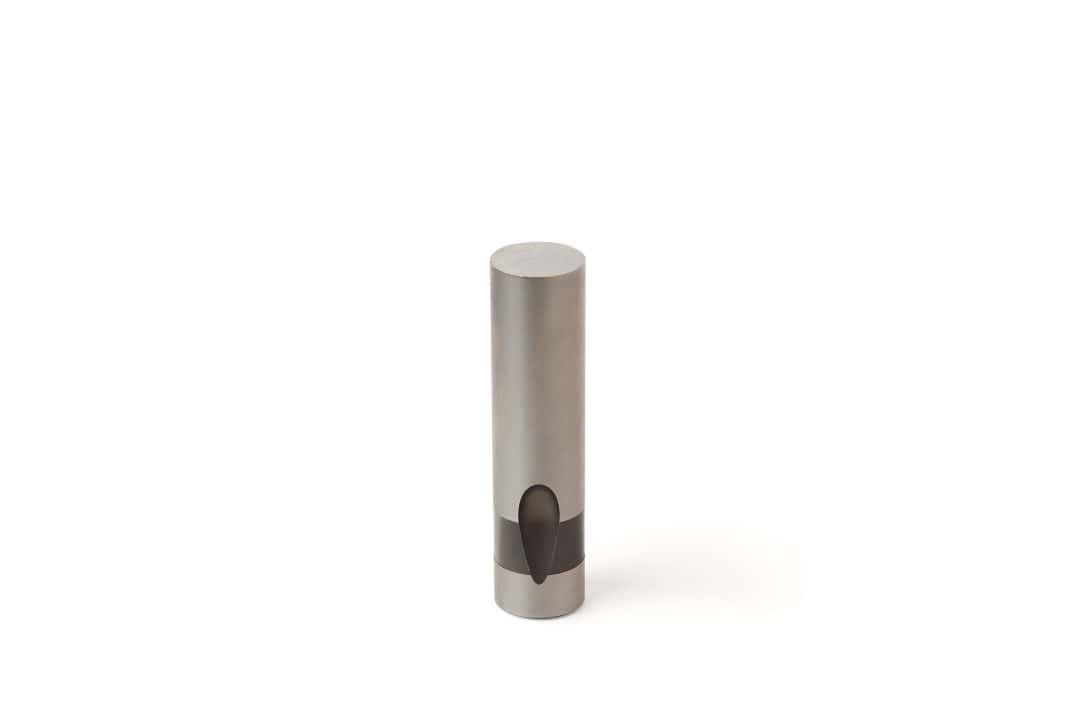

MBH Blank (Metric HD Solid)

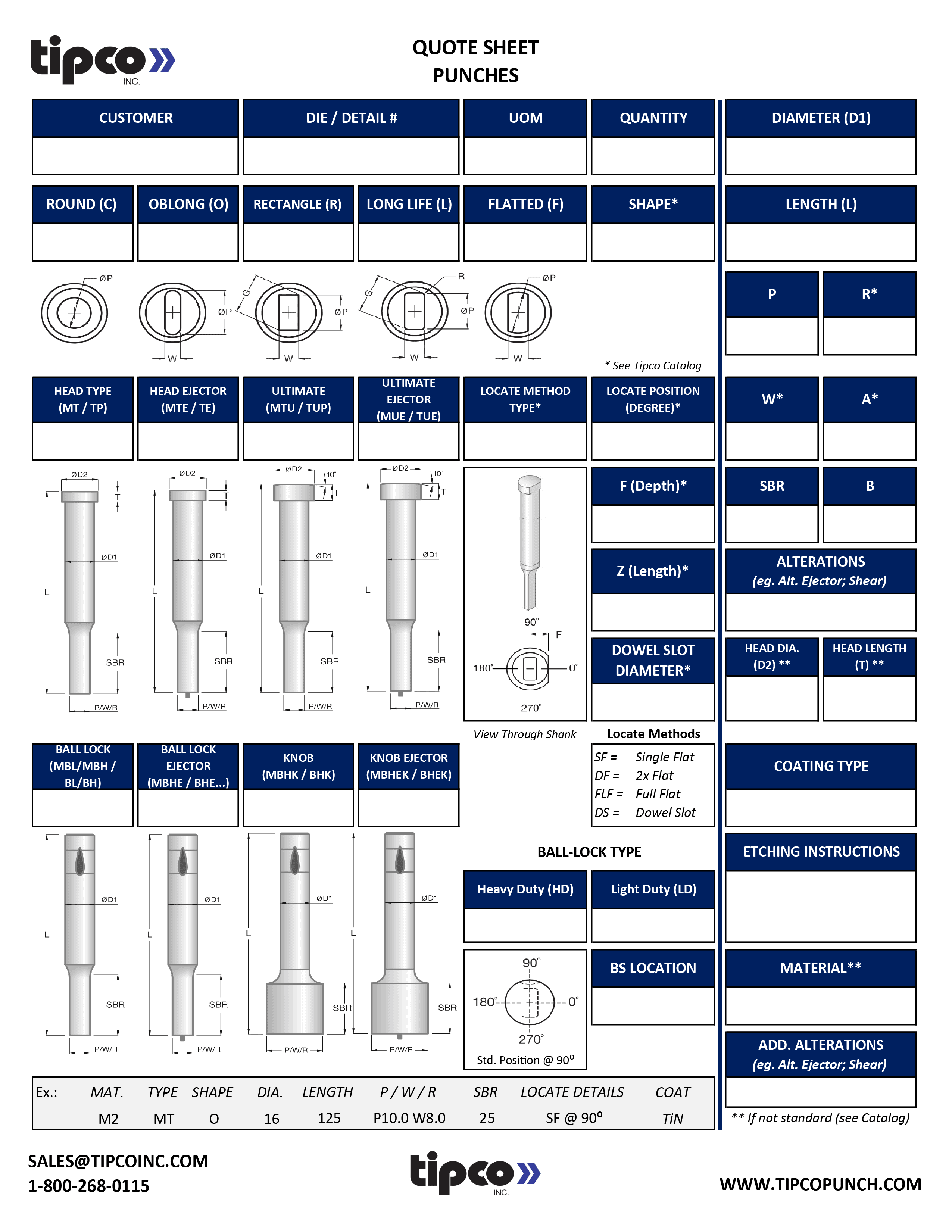

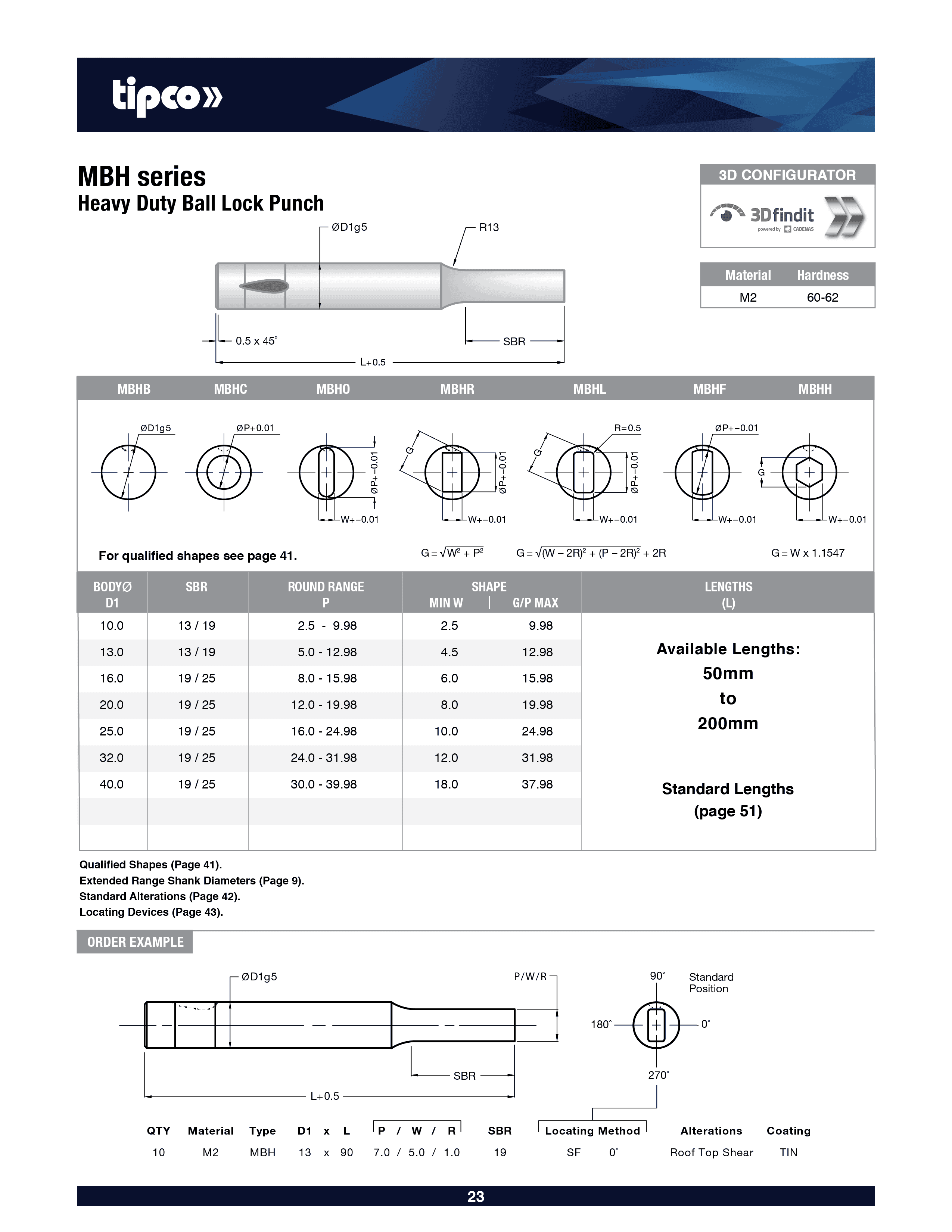

Order Tipco Ball-lock Heavy Duty (MBH) punch blanks based on: 1) Body diameter (D); and, 2) Length (L). For additional MBH punch details, view our Catalogue. To order shaped punches, Request a Quote.
Additional information
| Weight | 1 lbs |
|---|---|
| Dimensions | 5 × 3 × 3 cm |
| body_diameter | 10, 13, 16, 20, 25, 32, 40 |
| overall_length | 63, 71, 80, 90, 100, 110, 125, 150, 200 |
